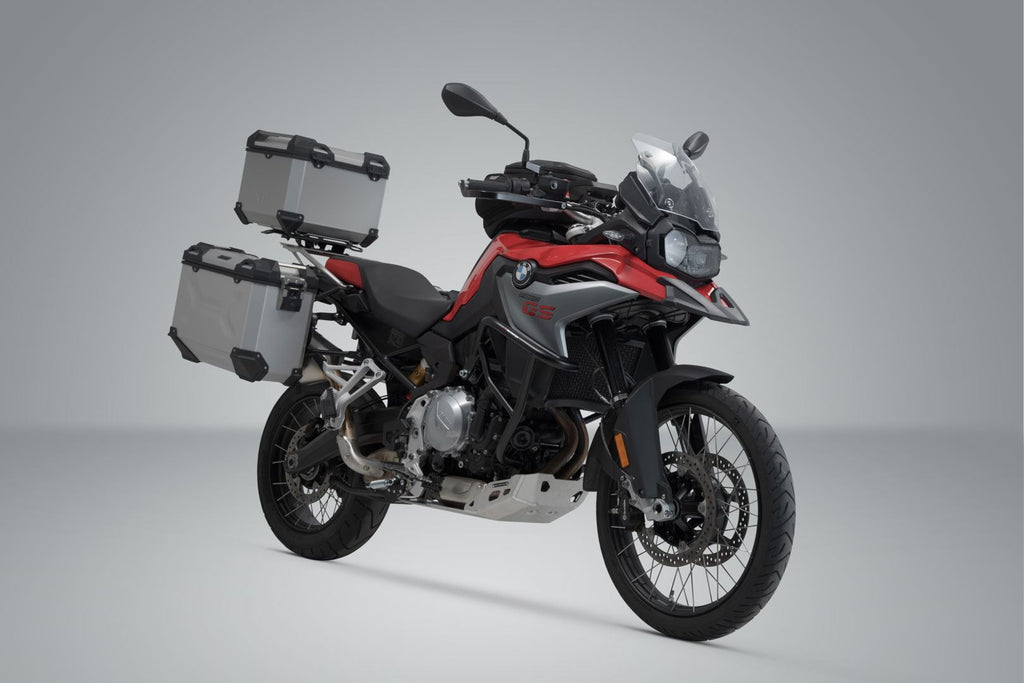

Adventure Set Luggage BMW F 750/850 GS Stainless steel Rack Silver

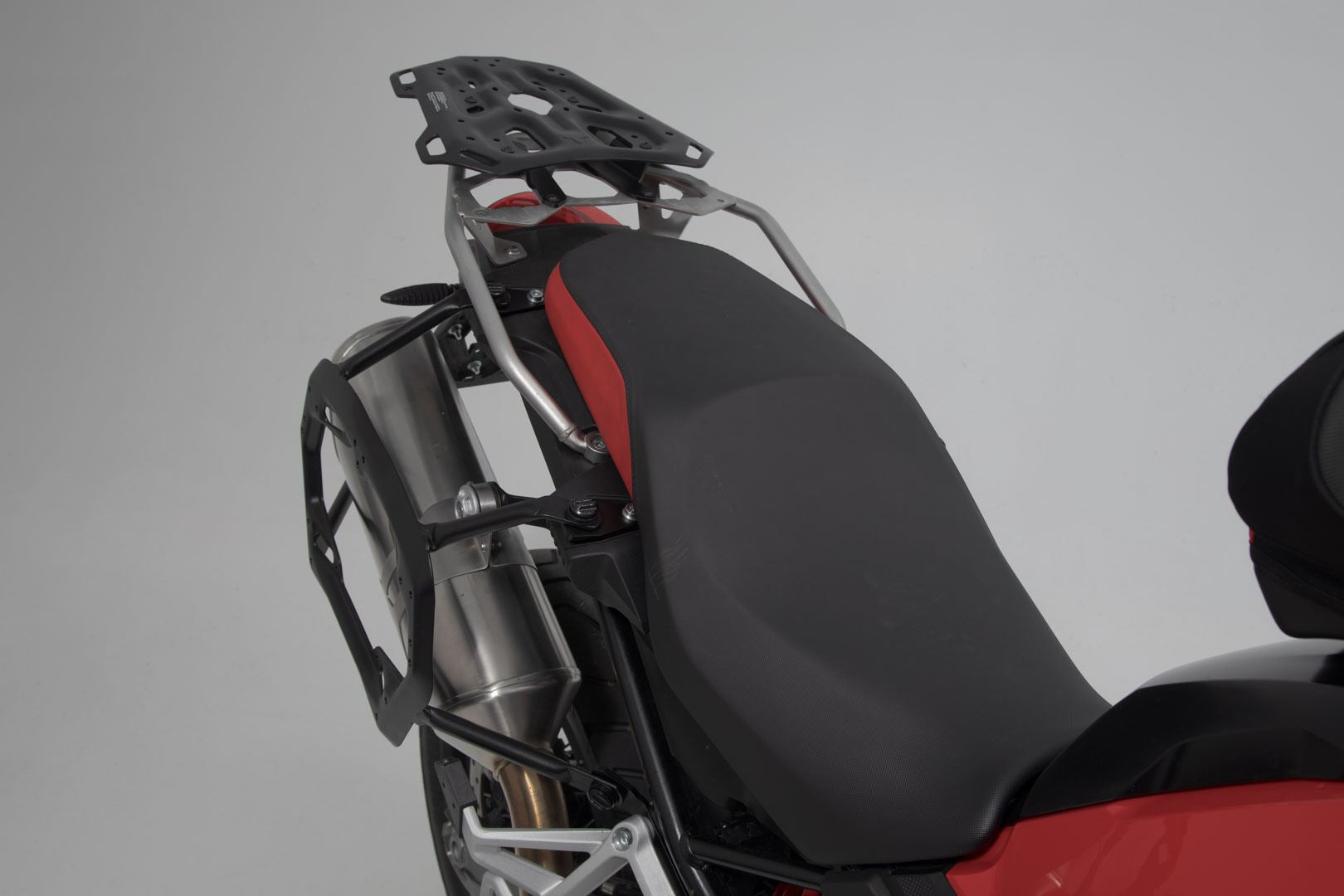

PRO Side carrier

• Extremely durable due to its optimized shape and 2.5 mm thick steel
• Perfect fit, designed to fit close to the bike
• Fully removable with newly developed, even more robust quick-release fasteners
• Optional anti-theft protection available
• For permanent mounting, quick-release fasteners can be replaced with standard parts (M8)
• Numerous functional bores, compatible with the RotopaX system among others
• Simple mounting on original mounting points
• Powerful corrosion protection thanks to powder coating
• Secure hold for TRAX, AERO and NANUK side cases and SysBag 15 and SysBag 30 with adapter plate
• Adapter kits for attaching cases from Givi/Kappa, Krauser and Shad are also available

• Details

• Material: Steel
• Surface: powder coated
• Color: black
• Width built onto motorcycle: 53,0 cm / 20.9 in

Adapter kit for PRO side carrier

• Adapter kit for attaching a TRAX or NANUK side case to an SW-MOTECH PRO side carrier
• Mounted on to the existing holes of the SW-MOTECH PRO side carrier
• For left and right sides

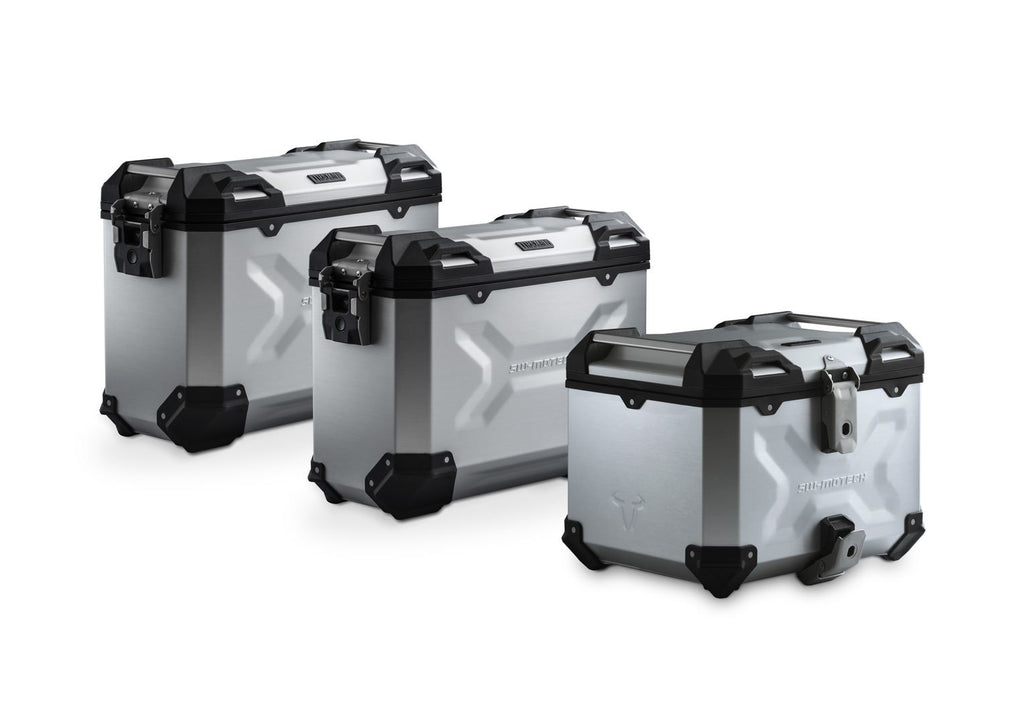

TRAX ADV L Aluminium case

• Model for the left side of the motorcycle
• Protection against oxidation and abrasion thanks to anodized finish
• Sturdy and watertight side case made from aluminium
• Large chamfer on sides for plenty of ground clearance for cornering, additional protection from glass fiber reinforced plastic corner caps
• Robot-guided welding and self-piercing riveting prevent dampness from getting in
• Even when loaded, completely removable lid with quick-release fastener
• 4 large tie-downs integrated into the lid design (e. g. for a tent or accessory bag)
• High stability thanks to the embossed patterns, welded edges and pre-installed retaining rail
• Hinges made from stainless steel, handles made from anodized aluminum
• Lid limiters provide additional stability when using extra luggage on the lid
• Exchangeable cover gasket
• The membrane makes it easy to open the lid, even in case of extreme pressure and temperature fluctuations
• Quick mounting on to all PRO and EVO luggage carriers (adapters sold separately)
• Adapter kits also available for mounting on to girders from other manufacturers such as Givi and Hepco & Becker
• A lock set with 6 identical locks is available as an option and is not included in delivery

• Details

• Material: Aluminum
• Material strength: 0,15 cm / 0.06 in
• Surface: anodized
• Color: silver
• Size: 49,0 x 28,0 x 37,0 cm / 19.3 x 11.0 x 14.6 in
• Total Weight: 5,4 kg / 11.9 lb
• Total Volume: 45,0 l

TRAX ADV M Aluminium case

• Model for the right side of the motorcycle
• Protection against oxidation and abrasion thanks to anodized finish
• Sturdy and watertight side case made from aluminium
• Large chamfer on sides for plenty of ground clearance for cornering, additional protection from glass fiber reinforced plastic corner caps
• Robot-guided welding and self-piercing riveting prevent dampness from getting in
• Even when loaded, completely removable lid with quick-release fastener
• 4 large tie-downs integrated into the lid design (e. g. for a tent or accessory bag)
• High stability thanks to the embossed patterns, welded edges and pre-installed retaining rail
• Hinges made from stainless steel, handles made from anodized aluminum
• Lid limiters provide additional stability when using extra luggage on the lid
• Exchangeable cover gasket
• The membrane makes it easy to open the lid, even in case of extreme pressure and temperature fluctuations
• Quick mounting on to all PRO and EVO luggage carriers (adapters sold separately)
• Adapter kits also available for mounting on to girders from other manufacturers such as Givi and Hepco & Becker
• A lock set with 6 identical locks is available as an option and is not included in delivery

• Details

• Material: Aluminum
• Surface: anodized
• Color: silver
• Size: 49,0 x 23,0 x 37,0 cm / 19.3 x 9.1 x 14.6 in
• Total Weight: 5,1 kg / 11.2 lb
• Total Volume: 37,0 l

TRAX lock set

• Matching locks
• Compatible with side cases and top cases from the TRAX ION and TRAX ADV series

Anti-theft protection for PRO side carriers

• Anti-theft protection for PRO side carrier
• With the anti-theft protection, any two quick release fasteners can be replaced
• Set for right and left PRO side carrier, consisting of 2 matching locks and 2 identical keys

Multi-tool key chain attachment

• Multitool as practical key chain
• Quick-release fastener opener for EVO and PRO side carriers
• Hex key (14 mm) - ideal for many motorcycle mirrors
• Hex keys in four additional sizes (8, 10, 12, 13 mm)
• Bottle opener
• Key chain eyelet
• With laser-etched SW-MOTECH logo

• Details

• Material: Stainless steel
• Surface: brushed
• Color: silver

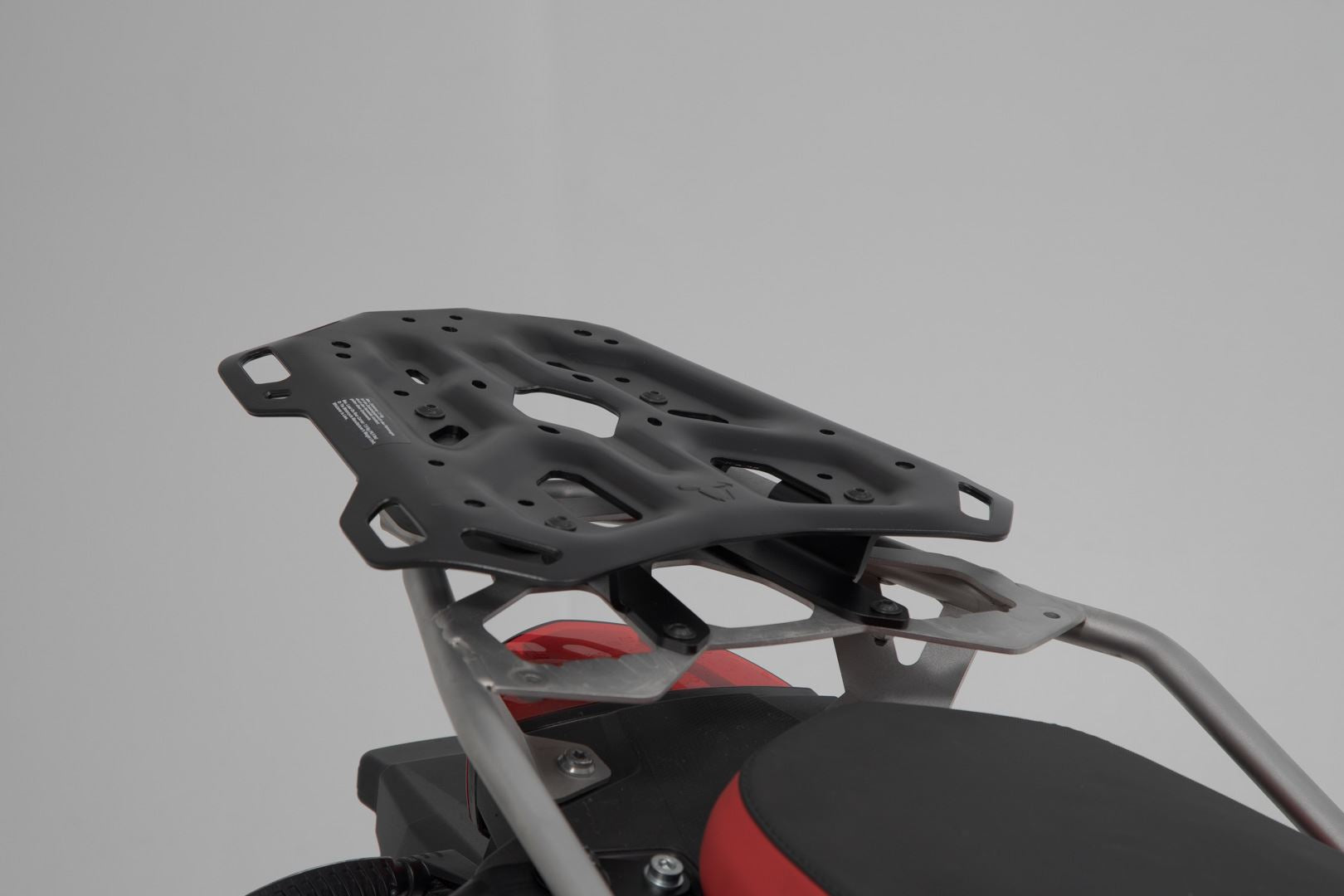

ADVENTURE-RACK Rack for stainless steel rack

• The ADVENTURE-RACK replaces the original plastic plate and is mounted directly onto the stainless steel BMW rack
• Extremely robust rack for long tours and off-road rides
• Exclusive manufacturing processes and its optimized shape lend an extra dose of stability to the ADVENTURE-RACK
• Its extreme durability during vibrations, impacts and high weight was tested in the lab and off-road under harshest conditions
• Multiple functional bores: for TRAX top cases. SysBag15/30 with adapter plate are available separately with the appropriate adapter kit
• Adapter kits for attaching top cases by other manufacturers (Givi Monokey and Monolock, Krauser, Shad I und II) also available
• Easy rigging of luggage on numerous, large lashing eyes, threading of 25 mm fasteners possible
• Especially large contact surface (Width: 32.9 cm at the front, 22.5 cm at the back, Length: 30.3 cm)
• Easy installation on original attachment points with bike-specific attachment elements
• Effective corrosion protection from black powder coating
• Made of light but sturdy 4mm-thick aluminum alloy

• Details

• Material: Aluminum
• Material strength: 0,40 cm / 0.16 in
• Surface: powder coated
• Color: black

Adapter kit for ADVENTURE-RACK

• Adapter kit for attaching a TRAX top case onto an ADVENTURE-RACK
• Compatible with TRAX ADV, TRAX ION and TRAX EVO top cases by SW-MOTECH
• Easy mounting: the adapter kit is screwed onto the rack

• Details

• Material: Polyamide / Stainless steel
• Color: black / silver

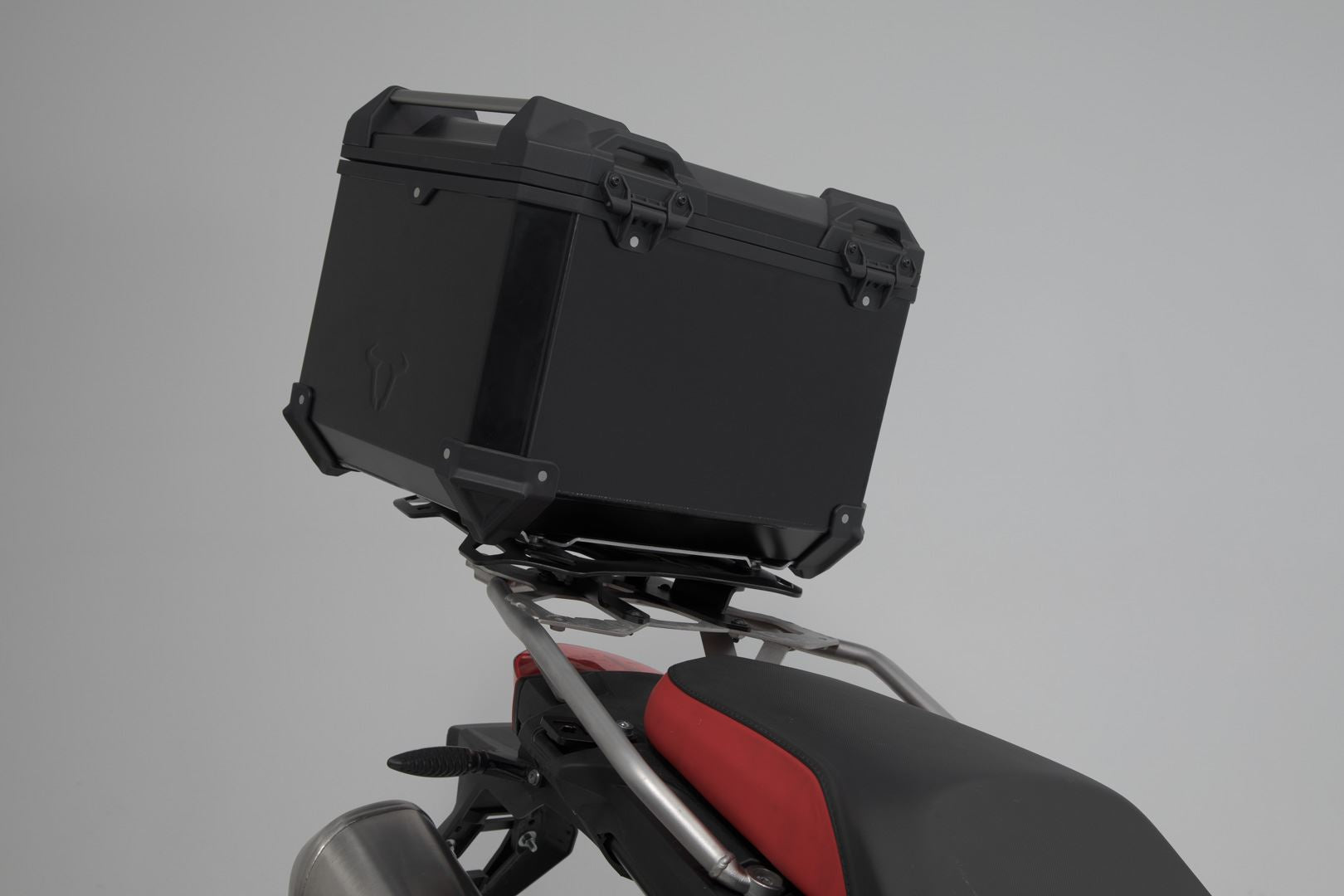

TRAX ADV Top case

• Protection against oxidation and abrasion thanks to anodized finish
• Premium top case made from 1.5 mm-thick aluminum
• Hinged lid with lid limiter, stainless steel latch, sturdy carrying handles and integrated mounting points
• 100% water- and dustproof due to robotic welding and punch rivet technology
• Theft protection: Case lid and case can be locked when on the carrier
• High stability thanks to the visually appealing and functional embossed sheet metal
• Additional protection from corners made of glassfiber-reinforced polyamide
• Easy to clean surface
• A lock set with 2 identical locks is available as an option and is not included in delivery

• Details

• Material: Aluminum
• Material strength: 0,15 cm / 0.06 in
• Surface: anodized
• Color: silver
• Size: 41,0 x 34,0 x 33,0 cm / 16.1 x 13.4 x 13.0 in
• Total Weight: 4,8 kg / 10.6 lb
• Total Volume: 38,0 l

TRAX M/L expansion bag

• Waterproof accessory bag that can be lashed onto side cases
• For side cases from SW-MOTECH and other brands (such as BMW, for ex.)
• 15 litres of additional storage, padded
• Circumferential, waterproof zipper enables quick access to the entire contents
• Overlapping lid is secured using plastic clips
• Divider for custom organisation of the interior
• Made of robust, easy to clean material
• Sleek design with reflective details
• Sturdy carrying handle
• 8 D-rings offer flexible lashing options (spacing of the inner D-rings: approx. 24 cm, spacing of the outer D-rings: approx. 32 cm)

• Details

• Material: 500D Polyester
• Color: black
• Size: 45,0 x 15,0 x 22,0 cm / 17.7 x 5.9 x 8.7 in
• Total Volume: 15,0 l
