Description

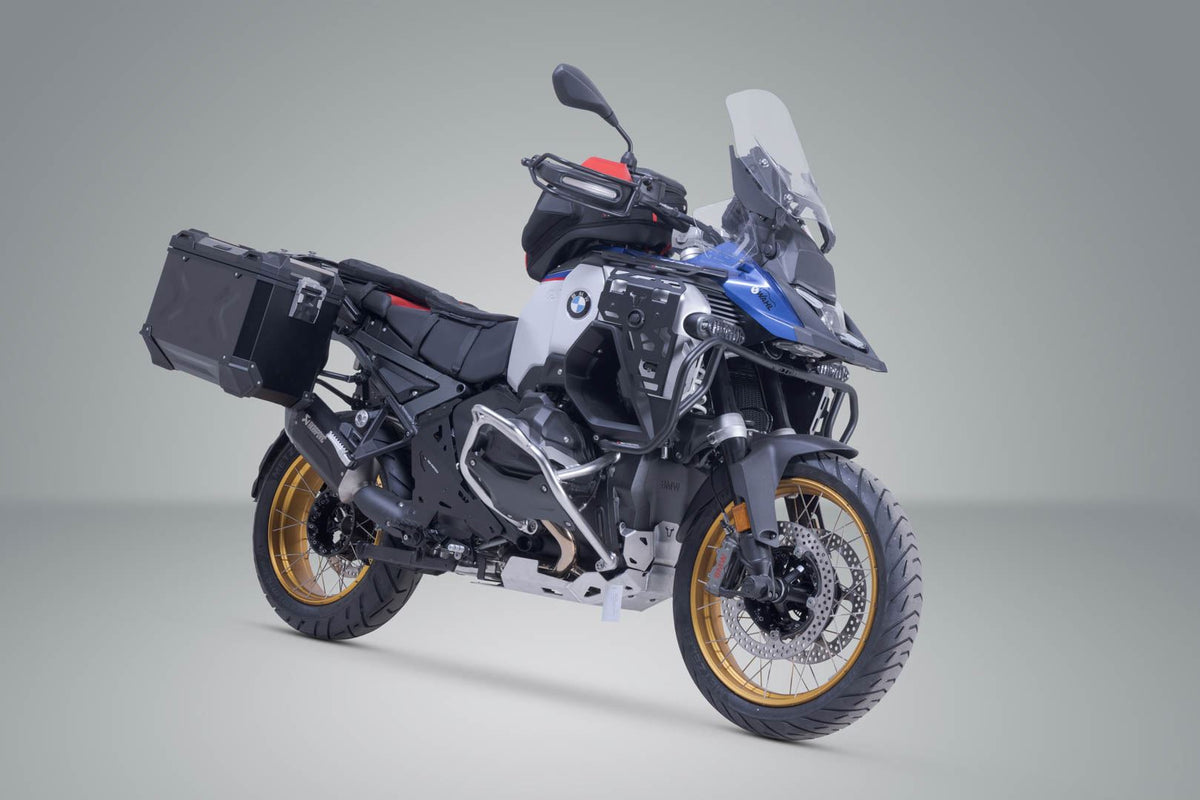

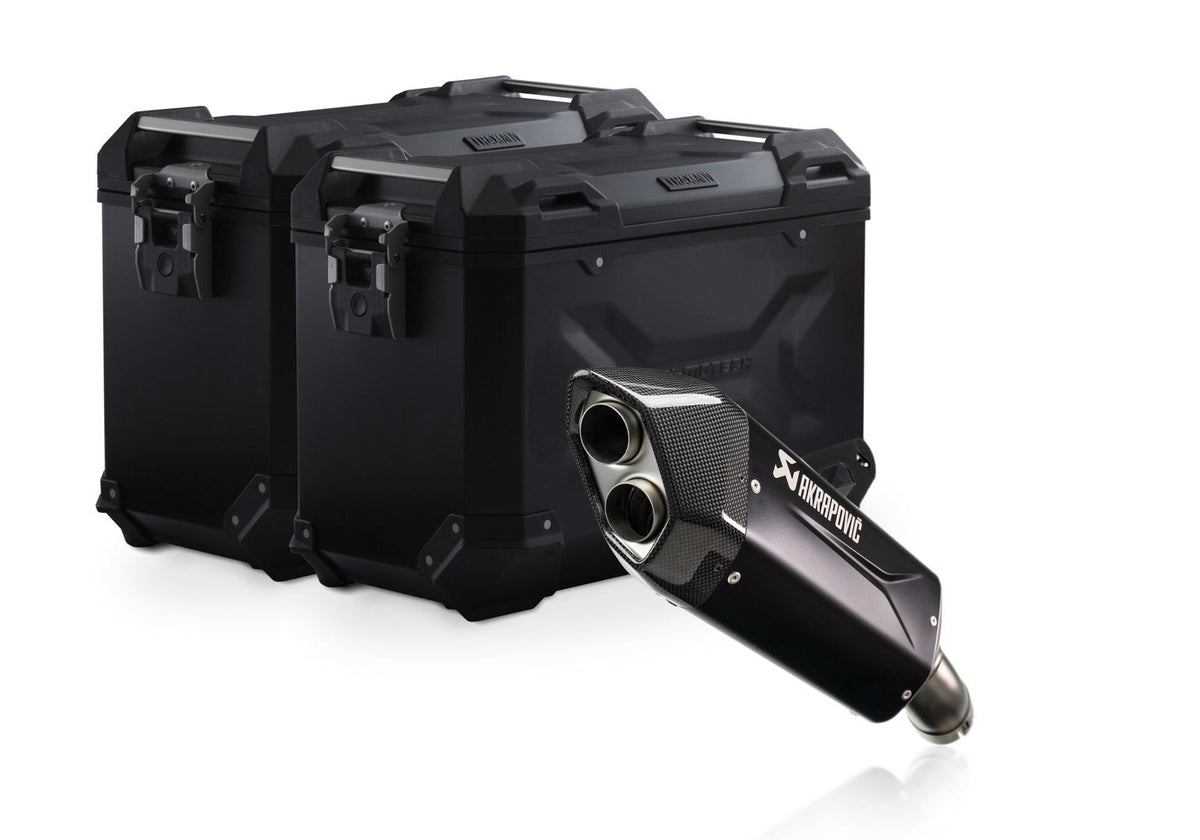

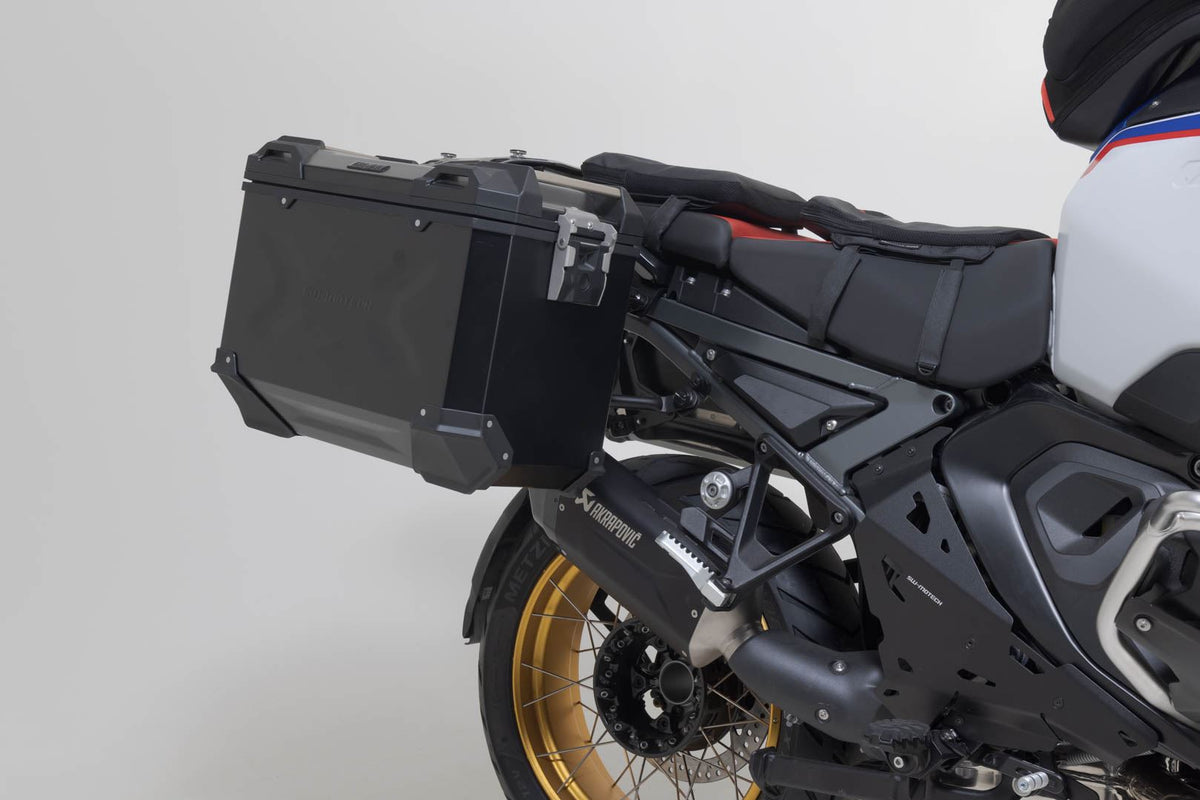

TRAX ADV aluminum case system + Akrapovic
Premium meets premium: together with Akrapovic, we have put together a special set consisting of a TRAX ADV aluminium case system in black and the matching Akrapovic slip-on exhaust for the BMW R 1300 GS. The Akrapovic Slip-On improves the performance of the BMW R 1300 GS and produces the typical Akrapovic sound. In addition, the rear silencer is of high quality and looks good, just like the SW-MOTECH aluminum cases from the TRAX ADV series.With a little skill, you can assemble the slip-on system yourself and, together with the aluminum cases, you get a high-quality set. The robust TRAX ADV aluminum cases adapt perfectly to any route: embossed patterns support the stability of the 1.5 millimeter thick, welded aluminum wall material. A completely removable lid with carrying handles made from anodized aluminum and quick-release fasteners makes loading and unloading the motorcycle cases easier; the beveled side edge provides high ground clearance when cornering. With this complete solution, you have all the components you need to go on a long journey with TRAX: two waterproof TRAX ADV side cases, two removable SW-MOTECH side carriers, an adapter kit, a lock set, a lid limiter and anti-theft protection at an attractive overall price. The bike-specific carriers and size of the cases are designed to perfectly match the shape of the tail as well as the motorcycle's exhaust system.A motorcycle case without compromise: When developing the TRAX ADV, the focus was on stability and tightness against dust and water, as well as easy handling. Whether it's an off-road adventure, a wanderlust tour, or a short trip, the premium aluminum cases with a wall thickness of 1.5 millimeters prove themselves in every challenge.
- Set of 2 TRAX ADV aluminum cases and an Akrapovic slip-on
- More power and torque
- Typical Akrapovic sound
-
Akrapovic Slip On exhaust system
- Model: S-B13SO4-HJGTBL
- For Euro 4 and Euro 5 - emission standard
Details
- Material: Carbon / Titanium
- Color: black
- Total Weight: appr. 2,1 kg / appr. 4.5 lb
-

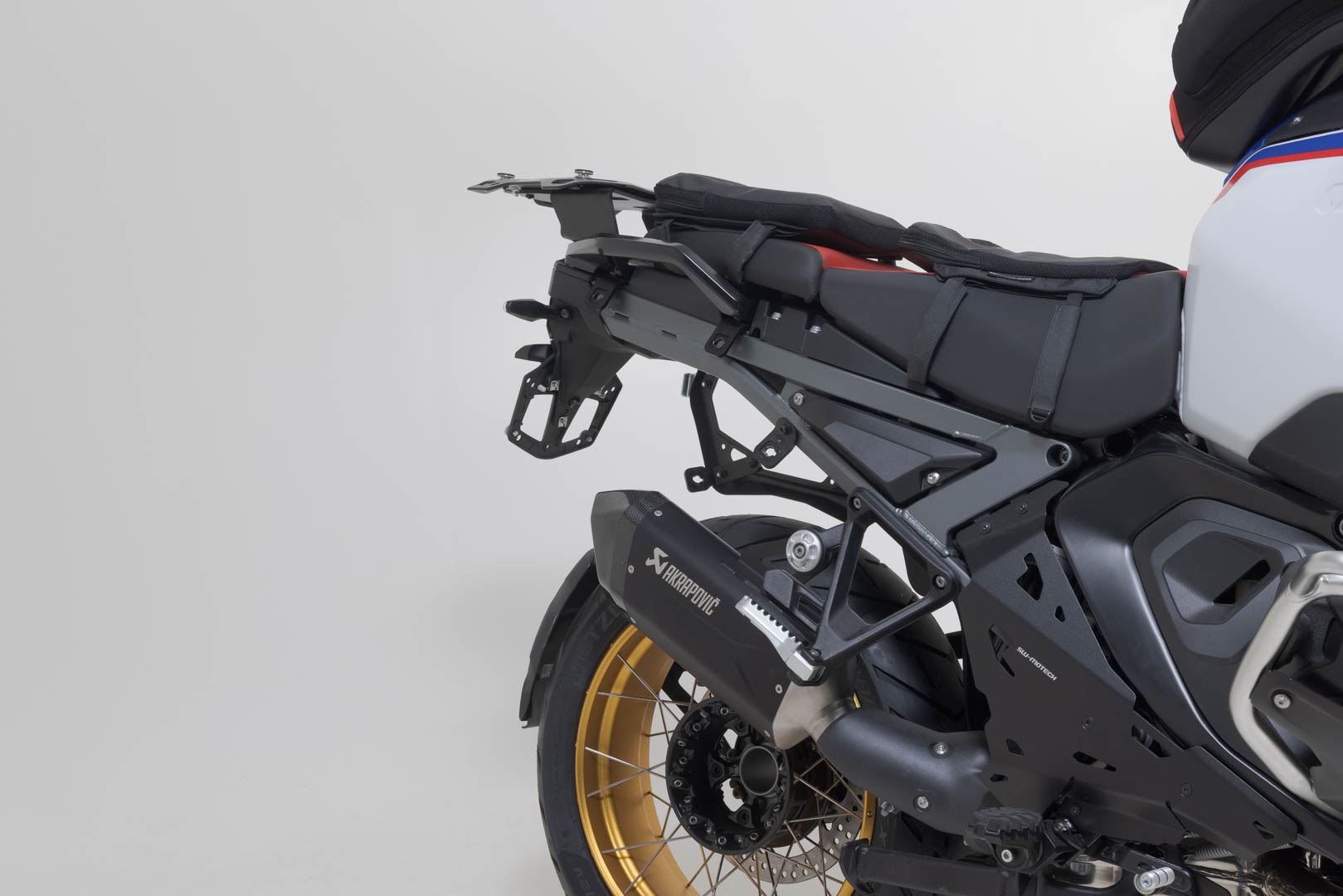

PRO Side carrier
- Extremely durable due to its optimized shape and 2.5 mm thick steel
- Perfect fit, designed to fit close to the bike
- Fully removable with newly developed, even more robust quick-release fasteners
- Optional anti-theft protection available
- For permanent mounting, quick-release fasteners can be replaced with standard parts (M8)
- Numerous functional bores
- Simple mounting on original mounting points
- Powerful corrosion protection thanks to powder coating
- Secure hold for TRAX, AERO and SysBags with adapter plate (SysBag 15, 30, WP L)
Details
- Material: Steel
- Surface: powder coated
- Color: black
- Size: 46,0 x 30,0 x 12,0 cm / 18.1 x 11.8 x 4.7 in
- Total Weight: appr. 4,6 kg / appr. 10.1 lb
- Width built onto motorcycle: 49,5 cm / 19.5 in
Note
- Adapter kits are required for aluminum cases from SW-MOTECH and other manufacturers and also for AERO ABS side cases and SysBags with adapter plates (SysBag 15, 30, WP L).
-

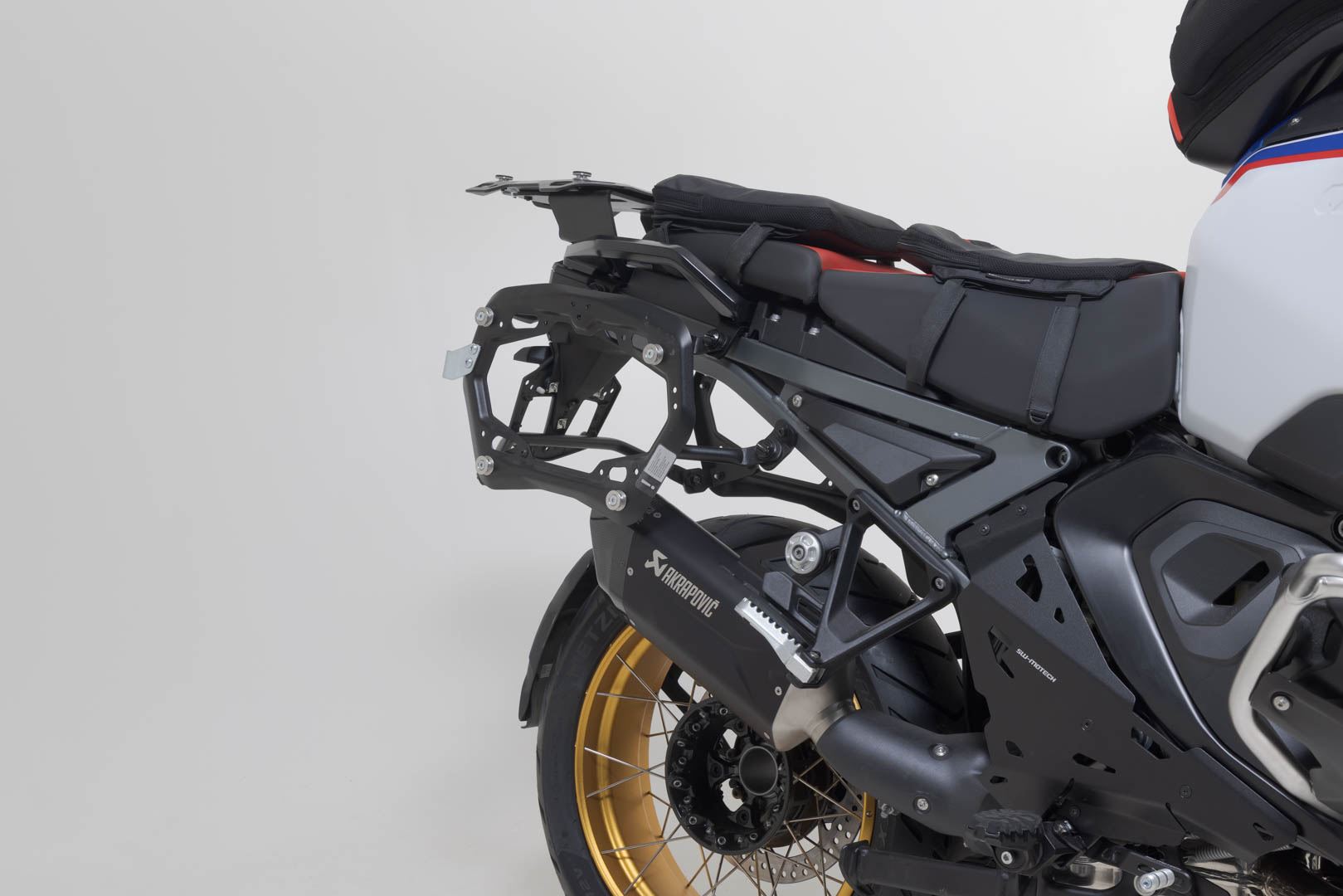

Adapter kit for PRO side carrier
- Adapter kit for attaching a TRAX or NANUK side case to an SW-MOTECH PRO side carrier
- Mounted on to the existing holes of the SW-MOTECH PRO side carrier
- For left and right sides
Details
- Color: silver
- Total Weight: appr. 0,3 kg / appr. 0.7 lb
-
TRAX ADV L Aluminium case
- Model for the left side of the motorcycle
- Protection against oxidation and abrasion thanks to black powder coating, easy to clean surface
- Sturdy and watertight side case made from aluminium
- Large chamfer on sides for plenty of ground clearance for cornering, additional protection from glass fiber reinforced plastic corner caps
- Robot-guided welding and self-piercing riveting prevent dampness from getting in
- Even when loaded, completely removable lid with quick-release fastener
- 4 large tie-downs integrated into the lid design (e. g. for a tent or accessory bag)
- High stability thanks to the embossed patterns, welded edges and pre-installed retaining rail
- Hinges made from stainless steel, handles made from anodized aluminum
- Lid limiters provide additional stability when using extra luggage on the lid
- Exchangeable cover gasket
- The membrane makes it easy to open the lid, even in case of extreme pressure and temperature fluctuations
- Quick mounting on to all PRO and EVO luggage carriers (adapters sold separately)
- Adapter kits also available for mounting on to girders from other manufacturers such as Givi and Hepco & Becker
- A lock set with 6 identical locks is available as an option and is not included in delivery
Details
- Material: Aluminum
- Material strength: 0,15 cm / 0.06 in
- Surface: powder coated
- Color: black
- Size: 49,0 x 28,0 x 37,0 cm / 19.3 x 11.0 x 14.6 in
- Total Weight: appr. 5,4 kg / appr. 11.9 lb
- Total Volume: 45,0 l
Note
- Also available as a TRAX ADV aluminum case system with 2 side cases, bike-specific side carriers, adapters and lock set.
Required for mounting
- Side carrier, adapter kit, TRAX lock set
-
TRAX ADV L Aluminium case
- Model for the right side of the motorcycle
- Protection against oxidation and abrasion thanks to black powder coating, easy to clean surface
- Sturdy and watertight side case made from aluminium
- Large chamfer on sides for plenty of ground clearance for cornering, additional protection from glass fiber reinforced plastic corner caps
- Robot-guided welding and self-piercing riveting prevent dampness from getting in
- Even when loaded, completely removable lid with quick-release fastener
- 4 large tie-downs integrated into the lid design (e. g. for a tent or accessory bag)
- High stability thanks to the embossed patterns, welded edges and pre-installed retaining rail
- Hinges made from stainless steel, handles made from anodized aluminum
- Lid limiters provide additional stability when using extra luggage on the lid
- Exchangeable cover gasket
- The membrane makes it easy to open the lid, even in case of extreme pressure and temperature fluctuations
- Quick mounting on to all PRO and EVO luggage carriers (adapters sold separately)
- Adapter kits also available for mounting on to girders from other manufacturers such as Givi and Hepco & Becker
- A lock set with 6 identical locks is available as an option and is not included in delivery
Details
- Material: Aluminum
- Material strength: 0,15 cm / 0.06 in
- Surface: powder coated
- Color: black
- Size: 49,0 x 28,0 x 37,0 cm / 19.3 x 11.0 x 14.6 in
- Total Weight: appr. 5,4 kg / appr. 11.9 lb
- Total Volume: 45,0 l
Note
- Also available as a TRAX ADV aluminum case system with 2 side cases, bike-specific side carriers, adapters and lock set.
Required for mounting
- Side carrier, adapter kit, TRAX lock set
-
TRAX lock set with PRO anti-theft protection
- 9 matching locks
- With anti-theft protection for PRO side carrier
- Compatible with side cases and top cases from the TRAX ADV and TRAX ION series
- One key for all locks
Details
- Color: black
- Total Weight: appr. 0,5 kg / appr. 1.0 lb
-
Multi-tool key chain attachment
- Multitool as practical key chain
- Quick-release fastener opener for EVO and PRO side carriers
- Hex key (14 mm) - ideal for many motorcycle mirrors
- Hex keys in four additional sizes (8, 10, 12, 13 mm)
- Bottle opener
- Key chain eyelet
- With laser-etched SW-MOTECH logo
Details
- Material: Stainless steel
- Surface: brushed
- Color: silver
- Total Weight: appr. 0,0 kg / appr. 0.1 lb
Included in delivery
- 1 x Akrapovic Slip On exhaust system
- 1 x TRAX ADV L Aluminium case, 45,00 l, left, black
- 1 x TRAX ADV M Aluminium case, 37,00 l, right, black
- 2 x PRO Side carrier
- 2 x Adapter kit for PRO side carrier
- 1 x TRAX lock set with PRO anti-theft protection
- 1 x Multi-tool key chain attachment
- 4 x Lid limiter
- 2 x Storage bag
- Mounting instructions
- Mounting material
Details
- Color: black
- Total Weight: appr. 23,7 kg / appr. 52.2 lb
- Total Volume: 90,0 l
Approval notice
The ABE (national type approval) certificate booklet provided with this product must always be on hand when driving. This national type approval only applies to the models listed and in compliance with the information provided in the mounting instructions. Registering the product in your vehicle documents is not necessary if the approval certificate is carried with you. The field of application of the national type approval document is expanded annually. The current version of the national type approval report can be downloaded from the corresponding area of our online shop. Please note that an evaluation regarding the release of the product for motorcycle inspections outside of Germany must be clarified before purchase. Unfortunately, technical products that have been denied registration in the respective country can no longer be returned. Fees may apply for issuing the necessary foreign certifications.
